The LMACWEY BA06 Pro 500W is a compact folding electric bike designed for daily commuting, city travel, recreational riding, and riders who need an e-bike that can be stored in smaller spaces. Its 48V 500W rear hub motor works with a torque sensor to adjust electric assistance based on pedaling input, giving the bike a smoother and more natural riding response.
A 48V 9.6Ah LG 21700 lithium-ion battery, carbon belt drive, TEKTRO hydraulic disc brakes, and 20 × 2.125-inch tires provide a practical setup for regular urban use. The BA06 has a listed maximum speed of approximately 20 MPH and a listed mileage of up to 100 km / approximately 62 miles under suitable riding conditions.
The folding aluminum frame reduces the bike to approximately 34.6 × 16.9 × 27.6 inches for storage or transportation. Bluetooth connectivity, app functions, navigation mapping, password access, ride-data synchronization, and a color display add useful digital features for everyday riding.
Range and performance figures should be used for comparison. Actual results vary based on rider weight, assistance level, speed, hills, wind, temperature, tire pressure, battery condition, maintenance, and riding style.
E-bike laws and permitted riding areas vary by location. Check state and local requirements covering motor power, assisted speed, bike paths, roads, parks, and trails before riding.
Key Specifications
| Feature | Specification |
|---|---|
| Brand | LMACWEY |
| Model | BA06 |
| Product Type | Folding Electric City Bike |
| Available Colors | White, Gray, Red |
| Motor | 48V 500W rear hub motor |
| Controller | IPX6 waterproof controller |
| Assist Sensor | Torque sensor |
| Battery | 48V 9.6Ah LG 21700 lithium-ion battery |
| Battery Capacity | Approximately 460.8Wh |
| Maximum Speed | Up to 32 km/h / 20 MPH |
| Listed Mileage | Up to 100 km / approximately 62 miles |
| Riding Modes | Manual riding and pedal assistance |
| Assist Levels | 3–9 assistance modes |
| Drive System | Carbon belt drive |
| Tires | 20 × 2.125 in |
| Brakes | TEKTRO hydraulic disc brakes |
| Display | Color smart display |
| Connectivity | Bluetooth and app connectivity |
| Smart Functions | Navigation mapping, password access, ride-data synchronization, walk assist and OTA updates |
| Security Feature | Front drum electronic lock |
| Frame | Folding aluminum frame |
| Paint Finish | Four-layer piano-style paint finish |
| Unfolded Dimensions | 1500 × 580 × 1170 mm / 59.1 × 22.8 × 46.1 in |
| Folded Dimensions | 880 × 430 × 700 mm / 34.6 × 16.9 × 27.6 in |
| Net Weight | 22.5 kg / approximately 49.6 lb |
| Gross Package Weight | 27.8 kg / approximately 61.3 lb |
| Package Dimensions | 88 × 42.5 × 66 cm / approximately 34.6 × 16.7 × 26 in |
| Optional Equipment | Fenders, rear rack, battery lock and front suspension |
500W Rear Hub Motor and Torque Sensor
The 48V 500W rear hub motor provides electric assistance for city commuting, everyday riding, moderate hills, and recreational trips.
A torque sensor measures how much force the rider applies to the pedals and adjusts motor assistance in response. Light pedaling produces gentler support, while stronger pedaling increases assistance.
This provides a more proportional riding feel than a basic system that only detects pedal movement.
LG 21700 Battery and Range
The BA06 uses a 48V 9.6Ah LG 21700 lithium-ion battery, providing approximately 460.8Wh of battery capacity.
The listed mileage is up to 100 km, or approximately 62 miles, under suitable conditions.
Actual riding distance depends on assistance level, rider weight, speed, terrain, elevation, temperature, wind, tire pressure, battery condition, and riding style.
The LG 21700 cell setup is designed around compact battery dimensions and repeated charge-discharge use.

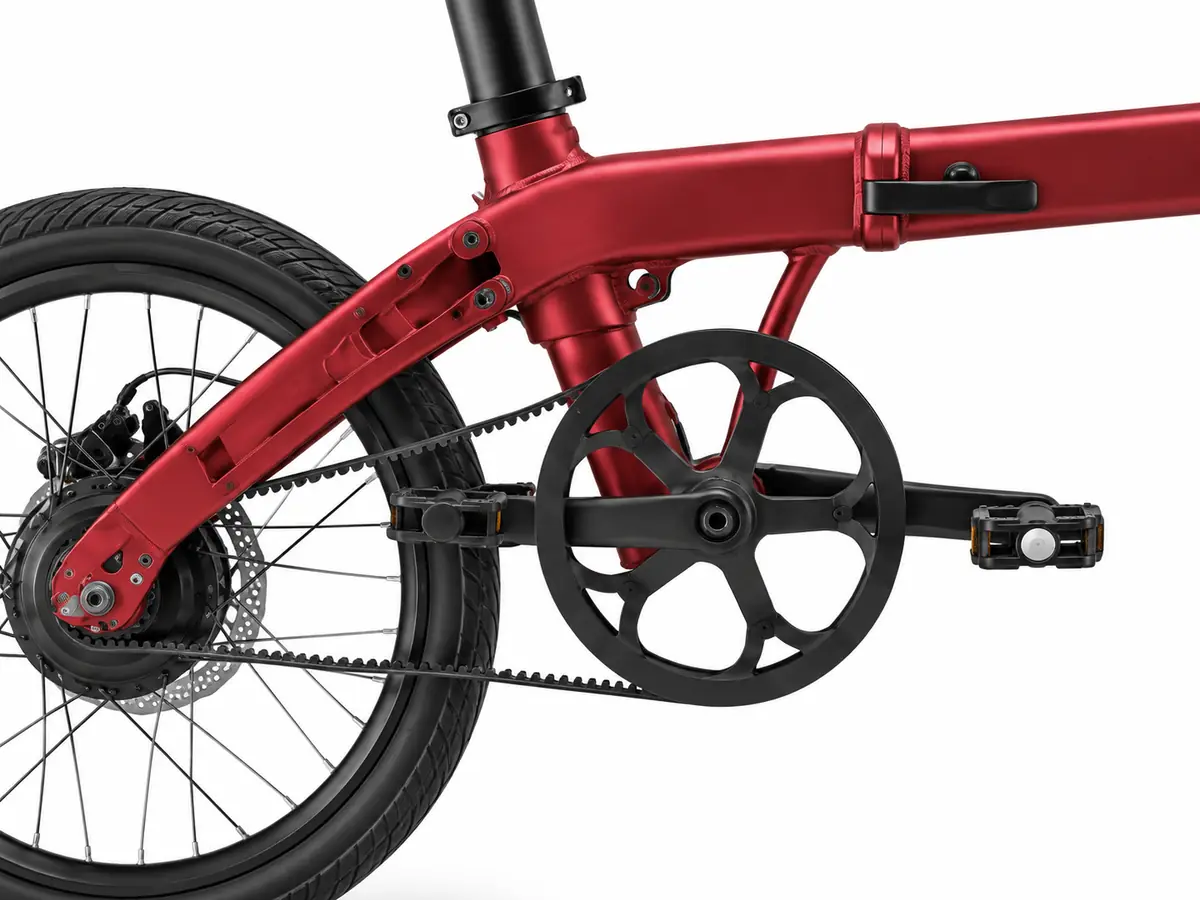

Carbon Belt Drive
The carbon belt drive replaces a conventional bicycle chain, giving the BA06 a quieter and cleaner drivetrain.
Unlike a traditional chain, the belt does not require chain grease and reduces routine drivetrain cleaning. The supplied product information gives a listed belt service distance of up to 30,000 km, although actual belt life depends on riding conditions, alignment, tension, maintenance, and use.
Hydraulic Disc Brakes and 20-Inch Tires
The BA06 uses TEKTRO hydraulic disc brakes for controlled braking during commuting and everyday city riding.
Its 20 × 2.125-inch tires keep the bike compact while providing a practical contact area for paved roads, cycle paths, and normal urban surfaces.
The 20-inch wheel format also helps reduce the overall folded size compared with larger-wheel commuter e-bikes.
Smart Display and App Connectivity
The BA06 includes a wide color display with Bluetooth and app support.
Available smart functions include:
- Password access
- Bluetooth connection
- Ride-data synchronization
- Navigation mapping
- Phone charging
- Walk assist
- OTA software updates
- Bluetooth proximity access
Available functions can vary depending on the supplied controller, software version, mobile phone, and app compatibility.

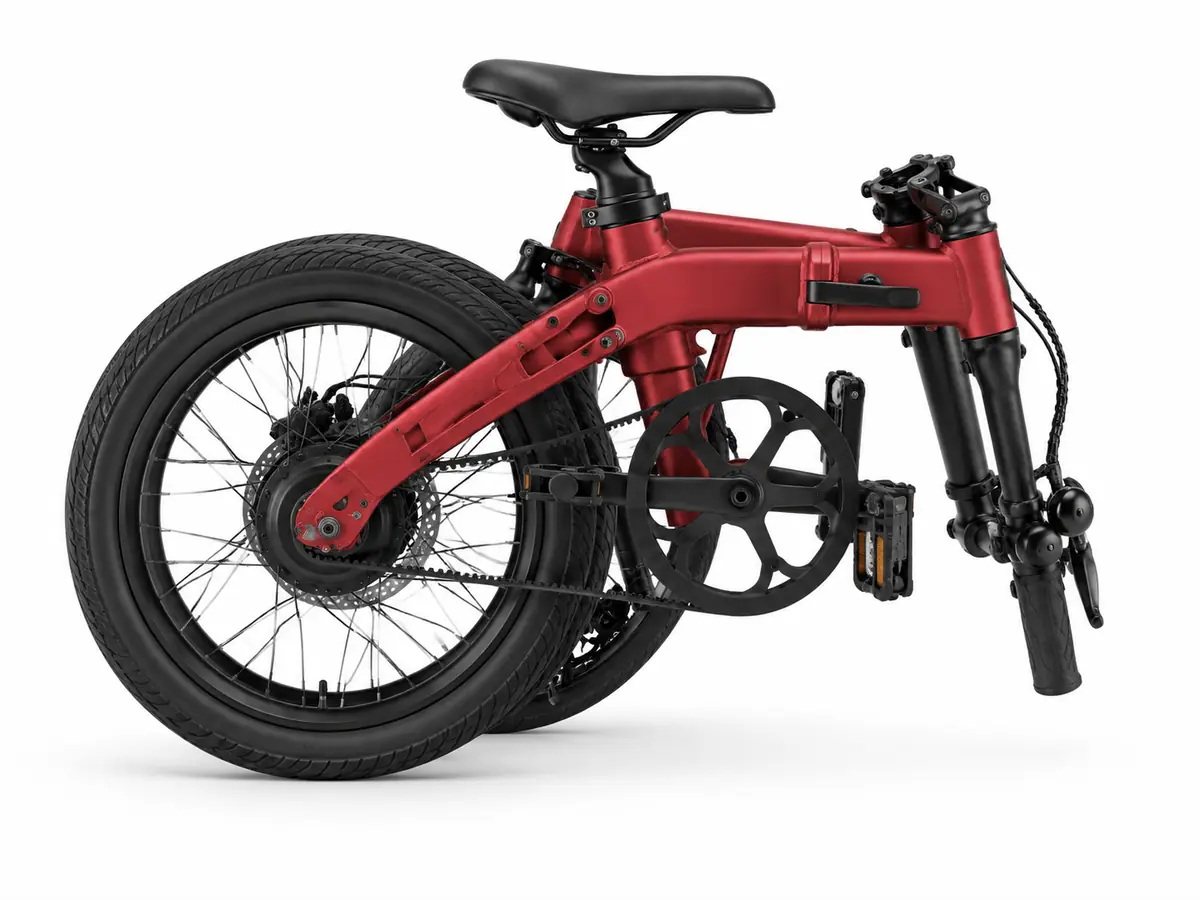

Folding Frame and Double-Lock Stem
The BA06 uses a compact folding frame and double-lock folding stem mechanism designed to provide two locking points around the folding stem.
When unfolded, the bike measures approximately 59.1 × 22.8 × 46.1 inches.
When folded, it reduces to approximately 34.6 × 16.9 × 27.6 inches, making it easier to store in apartments, garages, offices, or suitable vehicle storage areas.
At approximately 49.6 lb, the BA06 is lighter than many larger fat-tire electric bikes, although riders should still consider the lifting weight before regularly carrying the bike.
Frame Finish
The BA06 frame uses a four-layer piano-style paint finish designed to provide a smooth glossy surface with resistance to everyday scratches and wear.
The compact frame layout also integrates the battery into the seatpost area, helping maintain the clean appearance of the folding bike.
Recommended Use
The LMACWEY BA06 Pro is suited to daily commuting, city travel, paved bike routes, recreational riding, apartment storage, office storage, and riders looking for a compact folding electric bike.
It may particularly suit riders who prefer a 500W folding e-bike with a torque sensor, LG battery, carbon belt drive, hydraulic brakes, and smart app functions.
Before You Order
Select your preferred color and review the bike dimensions, folded size, weight, intended riding area, and local e-bike regulations before placing your order.
Optional equipment such as fenders, a rear rack, battery lock, or front suspension may depend on the selected configuration.
Contact America E Bikes for help with availability, shipping, assembly, package contents, replacement parts, or product compatibility.
Frequently Asked Questions
What motor does the LMACWEY BA06 use?
The BA06 uses a 48V 500W rear hub motor paired with a torque sensor for proportional pedal assistance.
What is the range of the LMACWEY BA06?
The BA06 has a listed mileage of up to 100 km, or approximately 62 miles. Actual riding distance varies with assistance level, rider weight, speed, hills, temperature, wind, tire pressure, battery condition, and riding style.
What battery does the BA06 use?
It uses a 48V 9.6Ah LG 21700 lithium-ion battery with approximately 460.8Wh of capacity.
Does the BA06 use a torque sensor?
Yes. The torque sensor measures pedaling force and adjusts motor assistance in response, providing more proportional support than a basic pedal-movement sensor.
Does the BA06 have a chain?
No. The BA06 uses a carbon belt drive. The belt does not require conventional chain grease and requires less routine drivetrain cleaning.
Does the BA06 have hydraulic brakes?
Yes. It uses TEKTRO hydraulic disc brakes for controlled braking during everyday riding.
How fast does the LMACWEY BA06 go?
The listed maximum speed is approximately 32 km/h or 20 MPH. Actual speed varies based on rider weight, battery level, terrain, tire pressure, riding conditions, and settings.
How small is the BA06 when folded?
The folded dimensions are approximately 34.6 × 16.9 × 27.6 inches, compared with approximately 59.1 × 22.8 × 46.1 inches when unfolded.
How much does the BA06 weigh?
The bike has a net weight of approximately 49.6 lb / 22.5 kg.
What smart features does the BA06 include?
The smart display and app system can support Bluetooth connectivity, navigation mapping, password access, ride-data synchronization, phone charging, walk assist, and OTA software updates.
